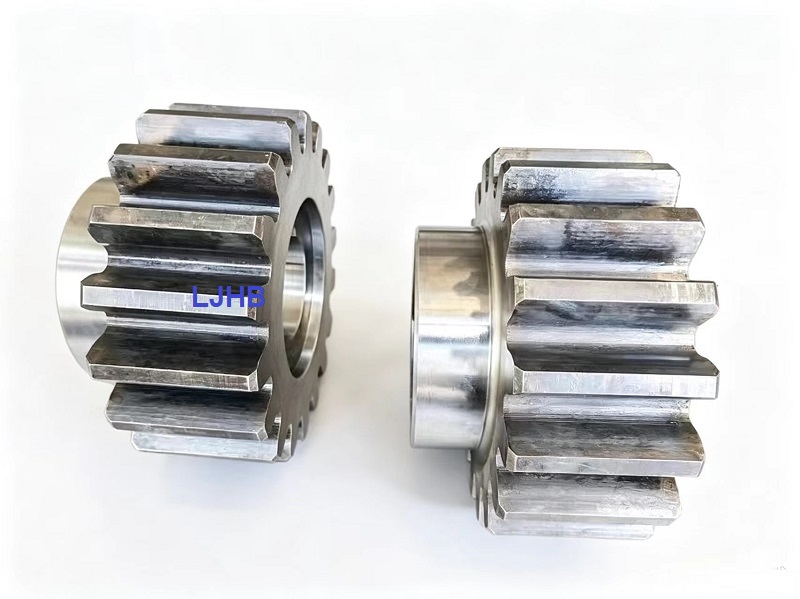

Customized Pinion gear 60x200x114mm with spur teeth 18pcs
Name: small pinion with external teeth
Full metric Size:60x200x114mm
Shaft diameter:60mm
Outer diameter:200mm
Total height:114mm
Our precision spur gears are fabricated from premium alloy steel, with precision CNC machining and professional heat treatment. The gear teeth are hardened to deliver excellent wear resistance, high load capacity and long service life.
The pinion gear inch size as following:
2.36”x7.87”x4.48”
Inner diameter (d):2.36”
Outer diameter(D):7.87”
Width（W）:4.48”
Teeth No.:18 pcs
Module:m 10.16
Teeth shape:spur teeth
Teeth: external teeth
Pressure angel: a 20 degree
Modification coefficient:x=0
Precision grade:10EG-GB/T10095
Queching&tempering hardness:250-300 HB
Teeth quenching hardness: HRC50+-5
Material:42CrMo
The delivery time:30 days
