JK6-22E1Z ball bearing ring with flanged 25.15*17.09*2.205 inch size

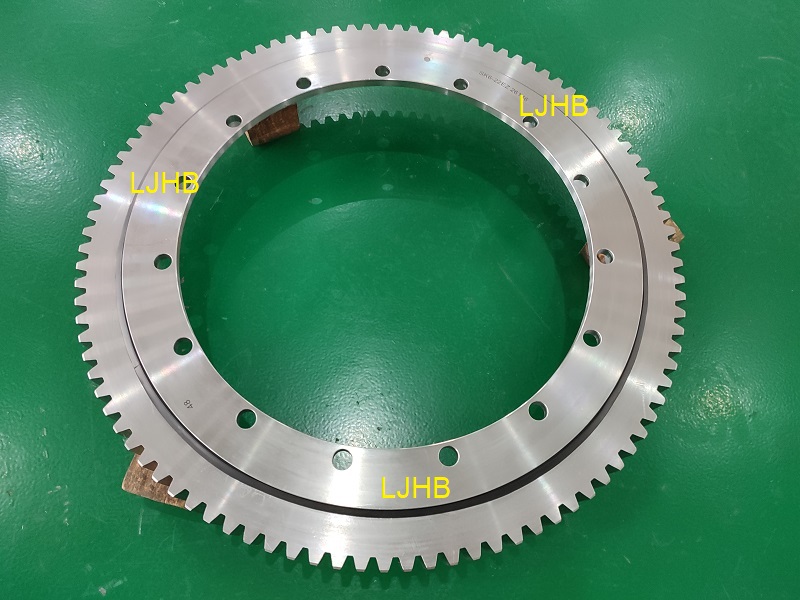

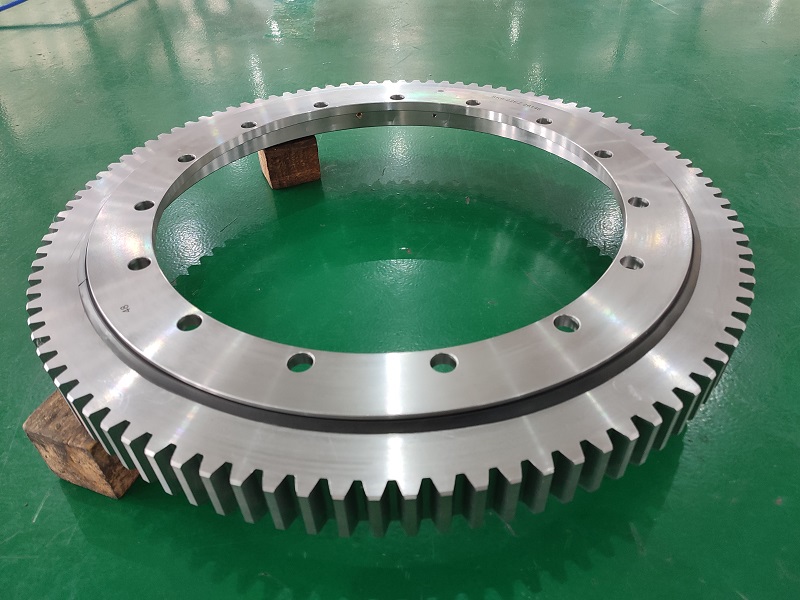

The bearing JK6-22E1Z outer ring with gear teeth, and the inner ring with a flanged structure. The bearing full size 25.15*17.09*2.205 inch size or metric size 638.1*434*56mm are well suited for many application such as Small cranes, booms, and lifts, Industrial positioners and rotary tables
Chute swivels,Stretch wrapping machines,Bottle filling machines,Conveyors and related material
handling equipment,Rotating displays.
Slewing bearing type: JK6-22E1Z with gear teeth
Bearing teeth shape:Spur teeth shape
Bearing code :JK6-22E1Z
Size 25.15x17.09x2.205inch size
Outer dia：25.15 mm(53.465 inch size)
Inner dia：17.09mm(42.992 inch size)
Height：2.205 mm(4.921 inch size)
Weight:45Kgs
Feature:enabling the bearing to simultaneously carry radial, axial, and moment loads. the use of spacer balls alternated with load balls allows for lower rotational torque and superior performance in applications involving oscillatory movement.
Outer ring hole distribute: equally distribute space
Inner ring hole distribute:equal distribute space
Outer ring and inner ring material 42CrMo,50Mn
Rolling elements:ball
Lubrication type:Grease lubrication
Module m M=4
Teeth number :98PCS
Press angle:20 degree
Teeth :external teeth
Drive:By pinion gear teeth
Service:Offer assembly drawing and technology knowledge
