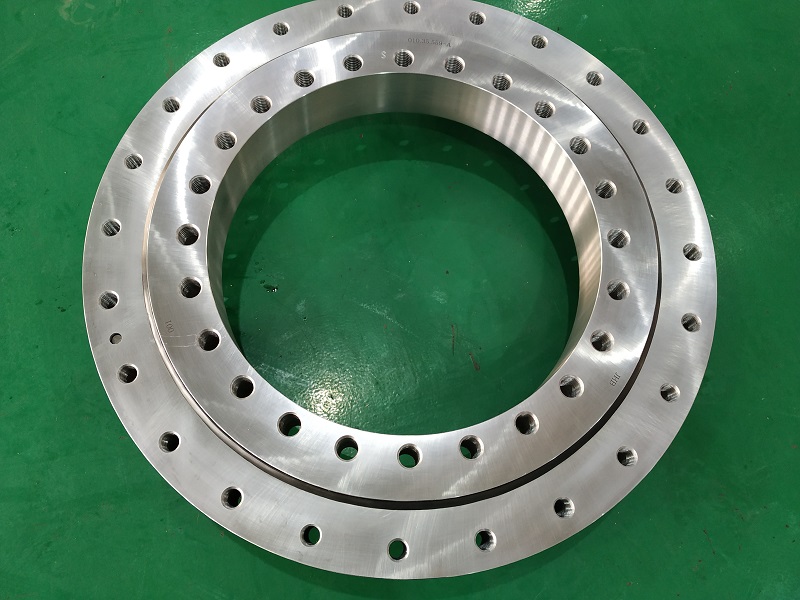

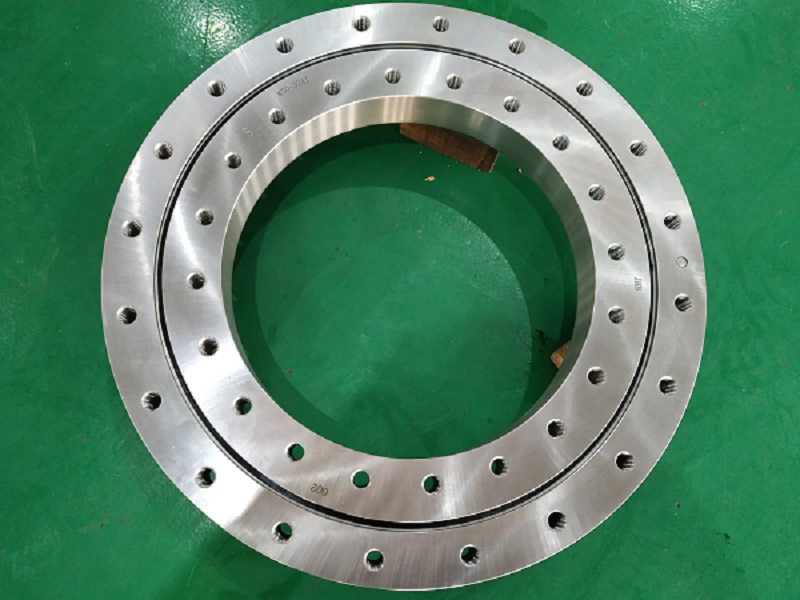

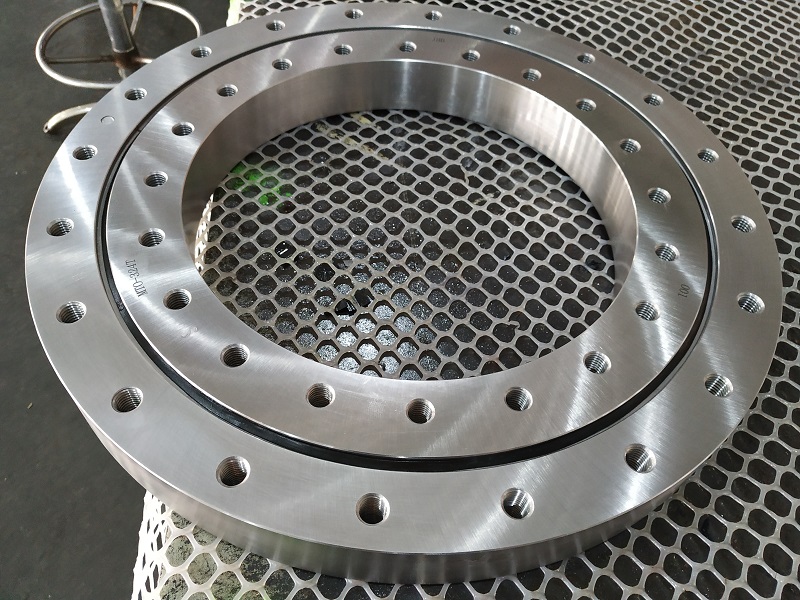

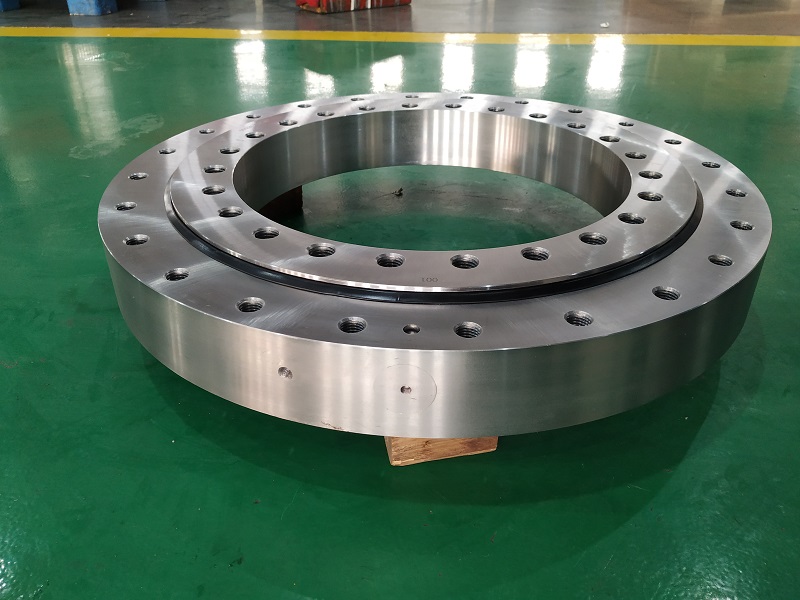

Slewing ball bearing MTO-324T for cotton equipment

Slewing ball bearing MTO-324T for cotton equipment

Slewing ball bearing item:MTO-324T

Structure:Four point contact ball slewing bearing

Bearing factory code :MTO-324T

Boundary Size：520.3x323.85x52.4mm

Outer dia metric size：520.3 mm(20.486 inch size)

Inner dia metric size：323.85mm(12.77inch size)

Height：52.4 mm(2.375 inch size)

Weight：47 Kgs

The ball bearing material :42CrMo,50Mn or stainless steel available

Outer ring hole distribute：10pcs,equally distribute space

Inner ring hole distribute：10pcs ,equal distribute space

 Rolling elements：ball

Delivery time:45 days

Axial Clearance :0.04-0.2

Package: wooden case

Lubrication type：Grease lubrication

 drive：By pinion gear teeth

Service：Offer assembly drawing and technology knowledge
