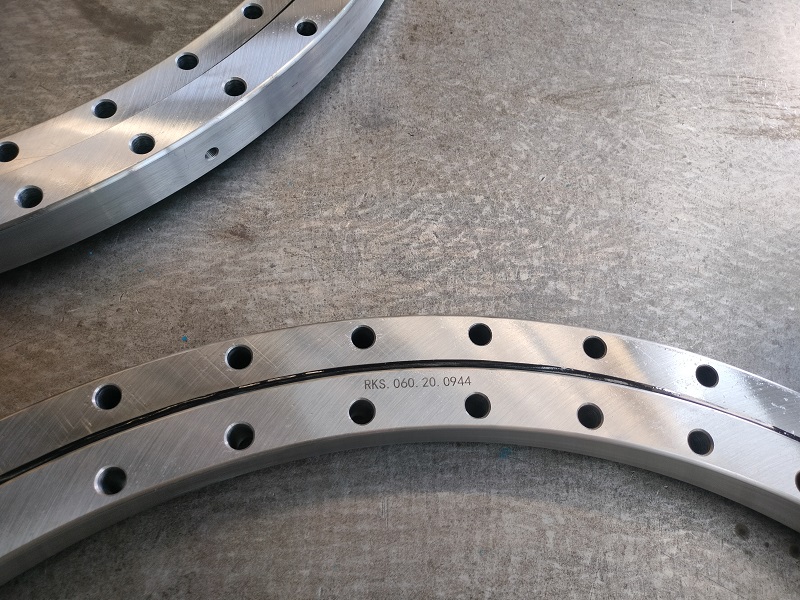

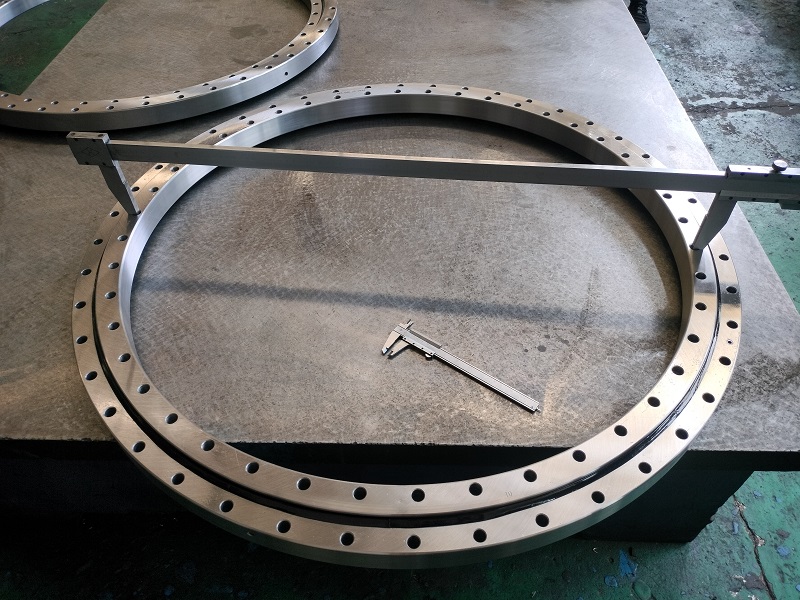

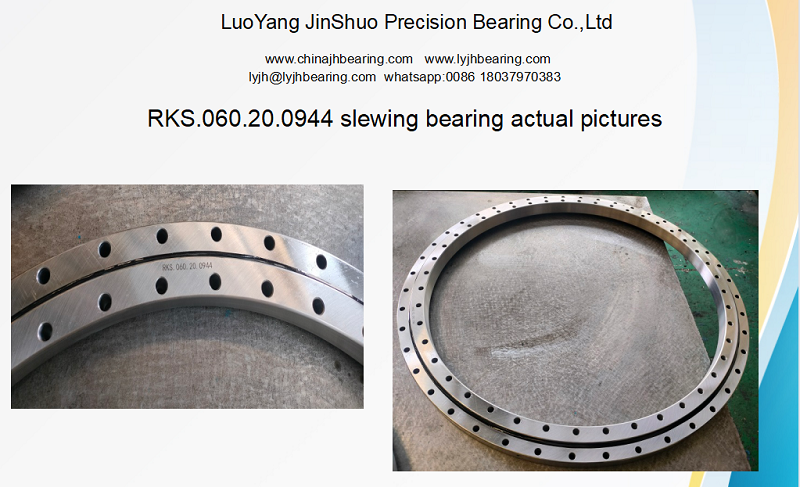

Slewing ball bearing RKS.060.20.0944 full size 1016x872x56mm

Slewing bearing item:RKS.060.20.0944

Boundary dimension metric size: 1016X872X56mm

Outer diameter:1016 mm

Inner diameter:872mm

Height:56mm

Structure:light series four point contact ball bearing

Lubrication: Grease lubrication

Full size inch size:40”x34.33”x2.2” inch size

Outside diameter:40”

Inside diameter:34.33”

Width:2.2”

The seal operation temperature of seal material range from-40 to +110 degree

Oil nipple yes

Outer ring and inner ring material:42CrMo,50Mn

Rolling elements:Ball

Ball material:GCr15

Seal material:NRC

Seal :Double seal

Teeth :Without teeth

Service:Offer drawing or service support

Application:hoisting, mechanical handling and general mechanical engineering
