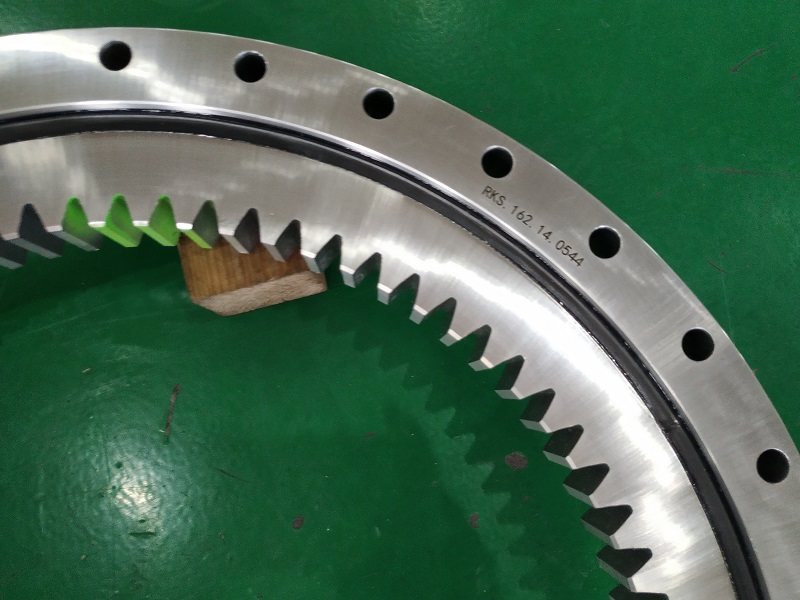

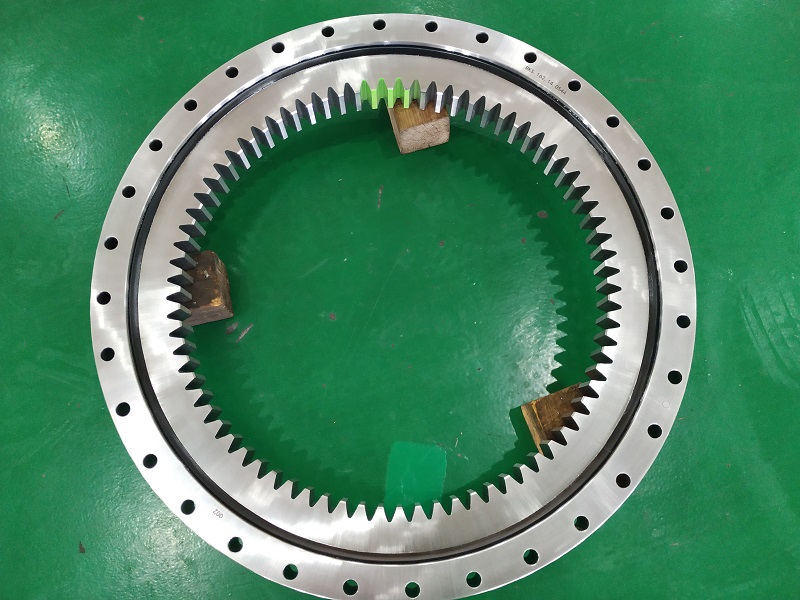

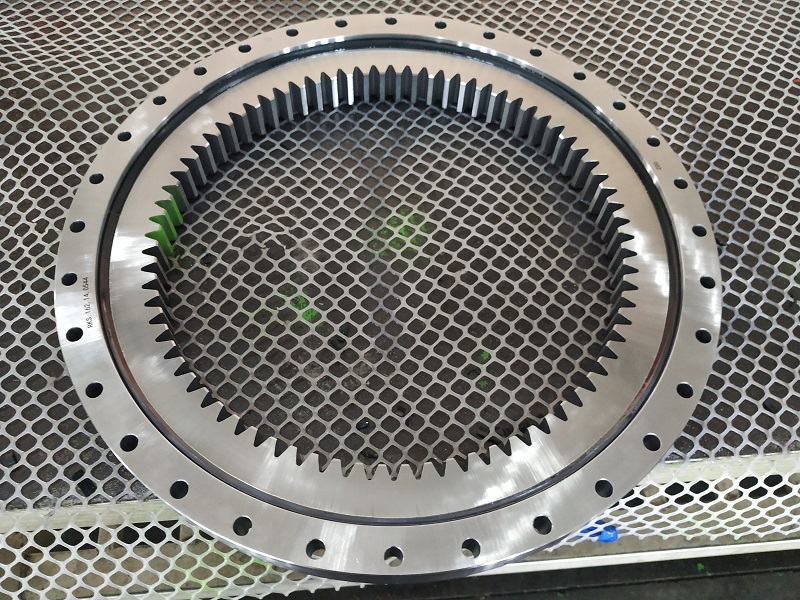

Slewing gear bearing 162.14.0544 with external gear teeth
Single row crossed cylindrical roller slewing bearings 162.14.0544 with dimension 616X445.2X56mm are simple in design, consisting of a one-piece inner and outer ring and cylindrical rollers separated by precision spacers and generally protected by integral seals.
Slewing bearing item: 162.14.0544
Structure: single row crossed roller slewing bearing
Application:earth moving, construction and material handling equipment as well as robotics.
Bearing factory code :RKS.162.14.0544

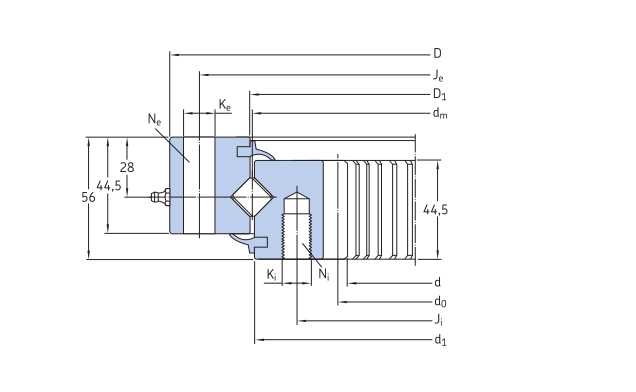

Boundary Size：616X445.2X56mm
Outer dia metric size：616 mm(24.25 inch size)
Inner dia metric size：445.2mm(17.52 inch size)
Height：56 mm(2.2 inch size)
Weight：42 Kgs
Crossed cylindrical roller slewing bearings are manufactured with zero clearance or preload.
The ball bearing material :42CrMo,50Mn or stainless steel available
Outer ring hole distribute：equally distribute space
Inner ring hole distribute：equal distribute space
Rolling elements：roller
Raceway:bearing steel for induction hardening
Delivery time:45 days
Package: wooden case
Lubrication type：Grease lubrication
drive：By pinion gear teeth
Service：Offer assembly drawing and technology knowledge
